Google Secrets Manager

Google Secret Manager is a managed service for storing secrets in a secure manner. It is a part of the Google Cloud Platform (GCP) and is available to all teams at NAV with applications running on GCP.

This is offered as a supplement to Kubernetes Secrets, and our Google Secrets Manager implementation uses Kubernetes Secrets to store the actual secrets within the cluster.

graph LR
  accTitle: Syncing Google Cloud Secrets to Kubernetes
  accDescr: The diagram shows how secrets are added to Google Secrets Manager via Cloud Console and then synced to Kubernetes before it is consumed by a pod.

  U --"Cloud Console"--> GSM
  GSM--sync-->K
  K-->A

  U[Developer]
  GSM[Google Secrets Manager]

  subgraph Kubernetes
    K[Secret]
    A[Pod]
  end

The secret in Google Secret Manager is the single source of truth. Modifications to the secret in Kubernetes will not be synchronized back to Google Secret Manager. Any modifications done in Kubernetes will be overwritten by the actual secret found in Google Secret Manager.

How-To

Tip

See the examples for a complete illustration of the process.

Step 1: Create a Secret in Google Secret Manager

Start at the GCP Console page.

A screenshot shows how to create a secret. Under the heading, secret manager, there is a descriptive text with a learn more link. Below it a button, called “Create secret”

Click on the Create Secret button.

Step 2: Secret Name

Give your secret a name. Ensure that the secret name adheres to the following restrictions:

  • Maximum length of 63 characters.
  • May only contain letters, numbers and hyphens (-).
  • Must be lowercase.
  • Must start with a lowercase letter or number.
  • Must end with a lowercase letter or number.

The name of the secret in Kubernetes will match the name of the secret in Google Secret Manager.

Naming collisions

Make sure that the secret name does not collide with an existing secret name.

If a secret with the same name already exists in Kubernetes, the secret will not be imported.

Step 3: Secret Replication Policy

All secrets must exist in the region europe-north1. This option is found when you click manually manage locations for this secret.

A screenshot shows where to find the checkbox allowing you to select “Manually manage locations for this secret. The heading is “Replication policy”, followed by an explanatory text. Below it, the checkbox that allows you to select “Manually manage locations for this secret”. Selecting it, enables you to use a dropdown called Location(s). Select “europe-north1”

Step 4: Secret Value

Fill in the Secret value.

A screenshot shows how to fill in the Secret value. The heading is “Secret value”, the text is “Input your secret value or import it directly from a file”. There are two options below. Either upload a file, by using the browse button. (Maximum size iis 65 KiB) Or input the secret value in the text field below.

If your secret contains environment variables (i.e. in the .env format with key-value pairs separated with =, one key-value pair per line):

A screenshot shows how to fill in the Secret value, if you have secrets formatted as environment variables. The heading is “Secret value”, the text is “Input your secret value or import it directly from a file”. There are two options below. Either upload a file, by using the browse button. (Maximum size is 65 KiB) Or input the secret value in the text field below. When the secret is an environment variable, use the text field. The example used i “FOO=BAR BAR=BAZ”

Then you will have to add the label env=true (i.e. key named env, value equal to true) to your secret in Google Secret Manager:

A screenshot shows how to label your secret, if your secret is formatted as environment variables. The heading is “Labels” and contains a help icon for further explanation. The text is “Use labels to organize and categorize your secrets”. There are two input fields in two rows. You can add rows by using the button “Add row” below, but this is cut from the screenshot so the non-alt-text-users will wonder how it is done. The input field “Key”, in which you should type “sync”. The input field “Value”, in which you should type “true”. For environment variables the second row contains the same input fields, but “Key” should contain “env” and “Value” should contain “true”.

This tells the synchronization mechanism to parse the secret as environment variables.

Step 5: Enable synchronization to Kubernetes

Label your Secret with sync=true (i.e. key named sync, value equal to true) to enable synchronization to NAIS:

A screenshot shows how to label your secret. The heading is “Labels” and contains a help icon for further explanation. The text is “Use labels to organize and categorize your secrets”. There are two input fields. The input field “Key”, in which you should type “sync”. The input field “Value”, in which you should type “true”

Warning

Synchronization only occurs when new secret versions are created.

If the secret already existed without this label, you must create a new secret version to effectuate the sync.

The latest secret version in Google Secret Manager will be copied into your Kubernetes namespace as a Kubernetes Secret.

Step 6: Save the Secret

Save the Secret to Google Secret Manager by clicking the Create Secret button at the bottom.

Step 7: Using the Secret in your applications

Now that the Secret exists in your Kubernetes namespace, your application may refer to and use it.

There are two ways of mounting/exposing a Kubernetes Secret to your application:

Environment variables

spec:
  # secret will be made available as environment variables
  envFrom:
    - secret: my-google-secret # value is the secret name in Google Secret Manager

Files

spec:
  # secret will be available in the file named "secret"
  # in the directory /var/run/secrets/my-secret/
  filesFrom:
    - secret: my-google-secret # value is the secret name in Google Secret Manager
      mountPath: /var/run/secrets/my-secret

Examples

Example with environment variable format

Google Secret Manager secret with environment variables

apiVersion: v1
data:
  SOME_ENV: c29tZS1zZWNyZXQtdmFsdWU=
  # key="SOME_ENV"
  # value="some-secret-value", base64 encoded
  SOME_OTHER_ENV: c29tZS1vdGhlci1zZWNyZXQ=
  # key="SOME_OTHER_ENV"
  # value="some-other-secret", base64 encoded
kind: Secret
metadata:
  annotations:
    hunter2.nais.io/last-modified: "2021-03-25T08:24:58Z"
    hunter2.nais.io/last-modified-by: user@nav.no
    hunter2.nais.io/secret-version: "2"
    reloader.stakater.com/match: "true"
  creationTimestamp: "2021-03-25T08:04:25Z"
  labels:
    nais.io/created-by: hunter2
  name: my-google-secret
  namespace: my-team
type: Opaque

spec:
  # secret will be available as files in the directory /var/run/secrets/my-google-secret/
  # e.g. /var/run/secrets/my-google-secret/SOME_ENV and /var/run/secrets/my-google-secret/SOME_OTHER_ENV
  filesFrom:
    - secret: my-google-secret # value is the secret name in Google Secret Manager
      mountPath: /var/run/secrets/my-google-secret

  # secret will be made available as environment variables
  # SOME_ENV=some-secret-value
  # SOME_OTHER_ENV=some-other-secret
  envFrom:
    - secret: my-google-secret # value is the secret name in Google Secret Manager

Example secret with single value format

This method is generally used when you need a binary file as a secret mounted to the file system of your pod. If you need environment variables, see the other example.

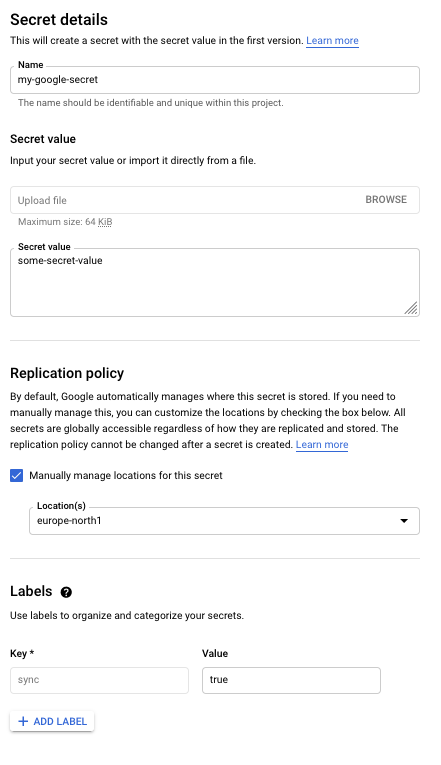

A screenshot shows the entire form for “Secret details”, using the example of single value format. It consists of the following sections: The heading is “Secret details” followed by an input field for “Name”, a section for “Secret value” where you can upload or enter your secret value. A section for “Replication policy”, where you should select “Manually manage locations for the secret” using the checkbox. In the dropdown below, called “Location(s)”, select “europe-north1”. The section below is called “Labels” and allows you to add labels to organize and categorize your secrets, using input fields for “Key” and “Value”. Below the row is a button “Add label”. Add a label, and in the new input field “Key” enter “env”. In the following input field “Value” enter “true”

apiVersion: v1
data:
  secret: c29tZS1zZWNyZXQtdmFsdWU=
  # key="secret"
  # value="some-secret-value", base64 encoded
kind: Secret
metadata:
  annotations:
    hunter2.nais.io/last-modified: "2021-03-25T08:04:19Z"
    hunter2.nais.io/last-modified-by: user@nav.no
    hunter2.nais.io/secret-version: "1"
    reloader.stakater.com/match: "true"
  creationTimestamp: "2021-03-25T08:04:25Z"
  labels:
    nais.io/created-by: hunter2
  name: my-google-secret
  namespace: my-team
type: Opaque

spec:
  # secret will be available in the file named "secret" in the directory /var/run/secrets/my-google-secret/
  # e.g. /var/run/secrets/my-google-secret/secret
  # note that the name "secret" is hard-coded and not configurable; the key used in the example below _must_ be "secret".
  filesFrom:
    - secret: my-google-secret # value is the secret name in Google Secret Manager
      mountPath: /var/run/secrets/my-google-secret
Last update: 2023-08-28
Created: 2020-09-22
